| Chassis | Highstrength chassis manufactured from S700MC via Robotic welding machine
|
| Painting | Steel blasted accordingly to SAE 2.5 norm + Zinc phosphate surfacecoated + KTL dip coated + acrylic based top coat in colour RAL 7021 + oven dried. 10 YEARS WARRANTY AGAINST RUST THROUGH
|
| Coupling | id 2” (50.8 mm) coupling point conformant to SAE and DIN 74/08 Standards
|
| Axles | 3 x 9 ton capacity 120 mm offset disc brake air suspension axle sets; Automatic and manual lifting system on the first axle (Lifting axle); The axle can be lifted by braking 3 times and pressing the button
|
| Landing Gears | Telescopic landing gears with 24 tonnes capacity and two speed landing gears painted in black
|
| Brake System & Lifting Axle | EBSbrake system with 2 modules and 2 sensors (2S/2M) according to Regulation ECE R13.11 or as subsequently amended; RSS (Road Stability Support) system; Pneumatic brakes with double circuit; Suspension system with manual lowering & lifting valves
|
| Lighting System | Lighting system with 24 Volt according to Regulation ECE R48.06 or as subsequently amended; LED side marker lamps with reflectors; Reflective band located on sides and at the rear; Bulkhead division with 2x7 pole DIN ISO 1185 and DIN ISO 3731 or 1x15 pole DIN ISO 12098
|
| Tyres and Rims | 6 pieces Steel Rims with 120 offset; 6 pieces of tyres 385/65 R 22.5 conformant to 2015/166/EU; Rims painted in silver RAL 9006 (A Brand choice of ORTHAUS TRAILERS)
|

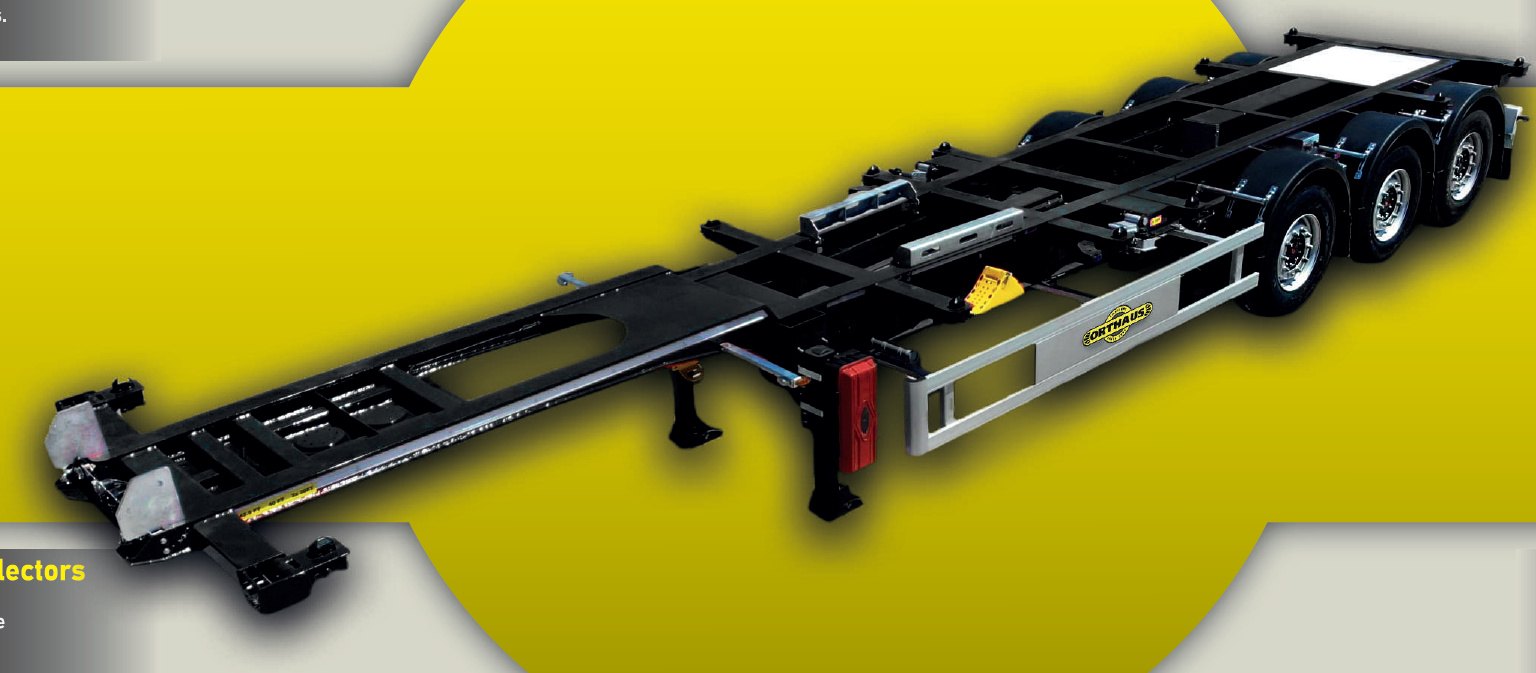

| Container Positions | 1x20 Ft rear; 1x20 Ft central; 2x20 Ft; 1x40 Ft HC; 1x45 Ft HC
|

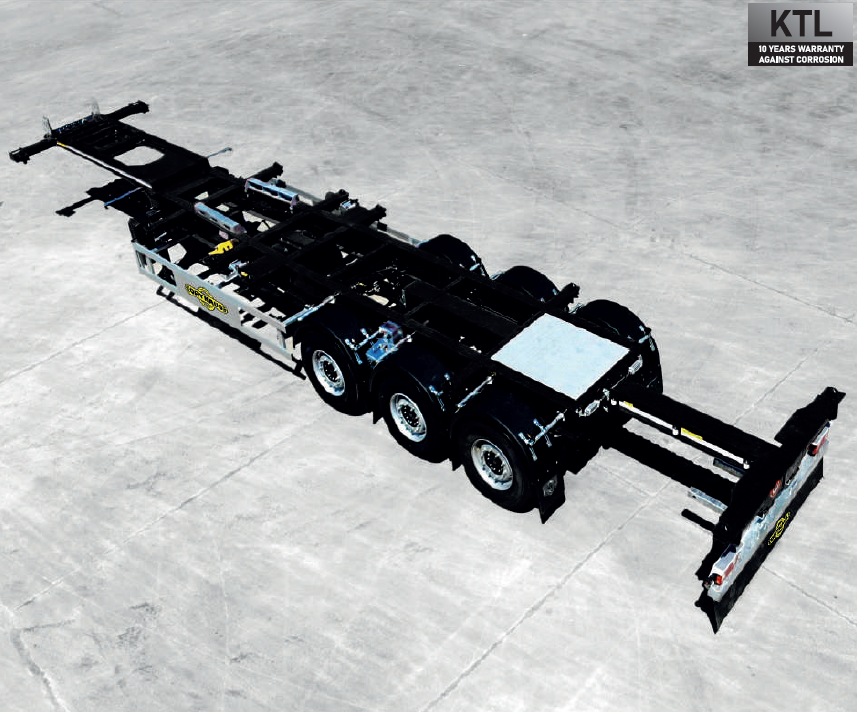

| Included Accessories of Chassis | Side protection barriers made from anodised extruded aluminium profiles according to Regulation UNECE R73.01 or as subsequently amended; Extendable rear bumper for 45 ft Container transport, made of steel material conforming to ECE R58.03 regulation; Lifting brackets for tunnelfree container transport; Autolocking extensible chassis to carry 1x20 ft, 2x20 ft, 1x40 ft, 1x45 ft containers; 6 pieces of mudguards conformant to 2015/166/EU + 6 pieces of antispray mud guards; Userfriendly control panel for brake system and full automatic locking extension of rear chassis; 2 pieces yellow wheel chocks with holder; Plastic document box; 2 pcs ferry rings; 1 piece fireextinguisher box |
