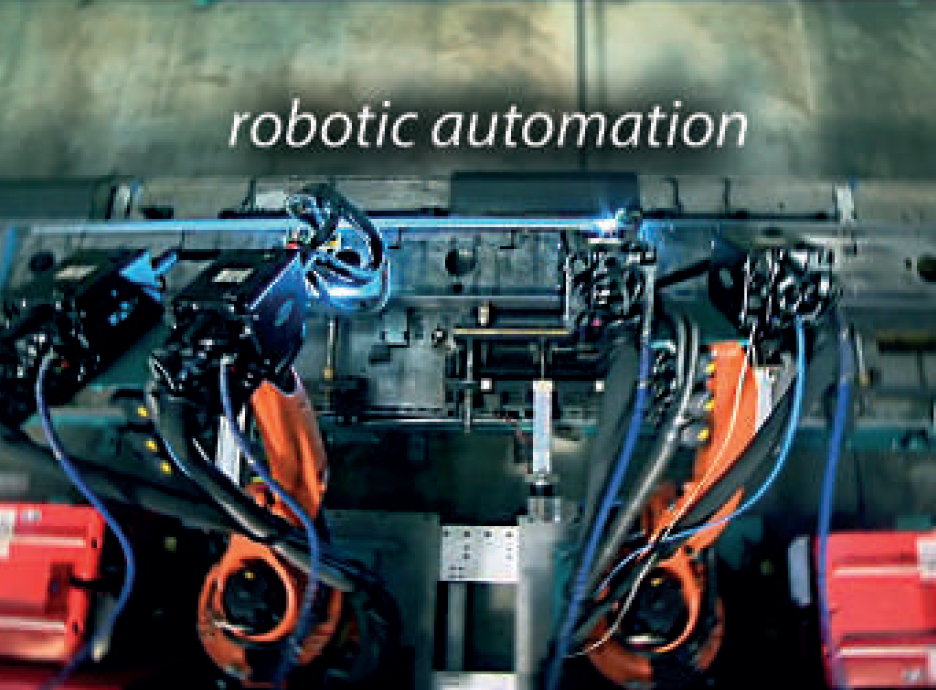

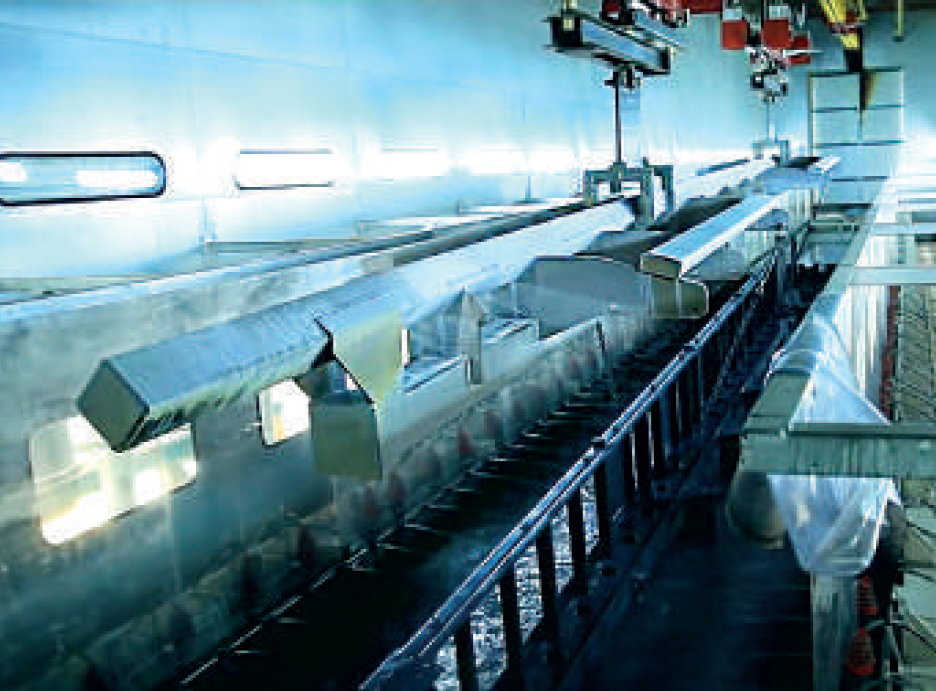

| Chassis | Chassis manufactured from S700MC via Robotic welding machine, 240x240 mm main frame, double T-beam (HEA), 8 mm thick outer frame; 30 mm steel pallet of the bogie; Galvanized
|

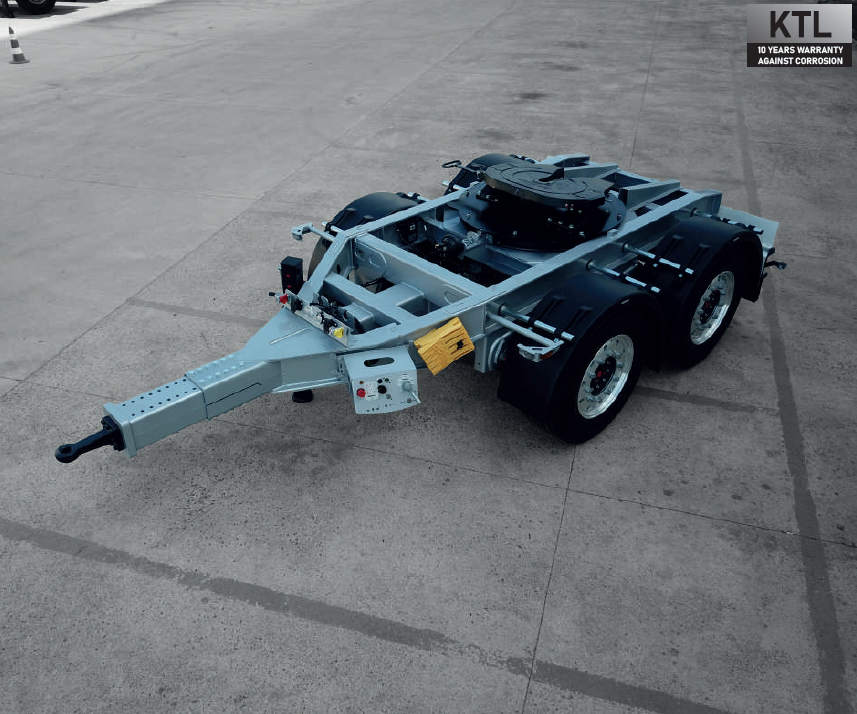

| Turntable | Double row ball bearing turntable
|
| Axles | 3 pieces axles with a capacity of 9 tonnes, axles with air suspension and drum brakes
|
| Brake System & Lifting Axle | EBS brake system with 3 modules and 4 sensors (4S/3M); RSS (Road Stability Support) system compliant to ECE R13; Pneumatic brakes with double circuit; Suspension system with lowering & lifting valves; Spring-applied parking brakes
|
| Lashings | 70 mm Hardwood floor, 10 mm checkered steel plate on top of tyres; 6x2 pillar sockets of 100x50mm located on side raves; 6x2 enlargement profiles located on side raves; 6 lashing rings with 8-ton capacity per side (2 front, 4 rear)
|

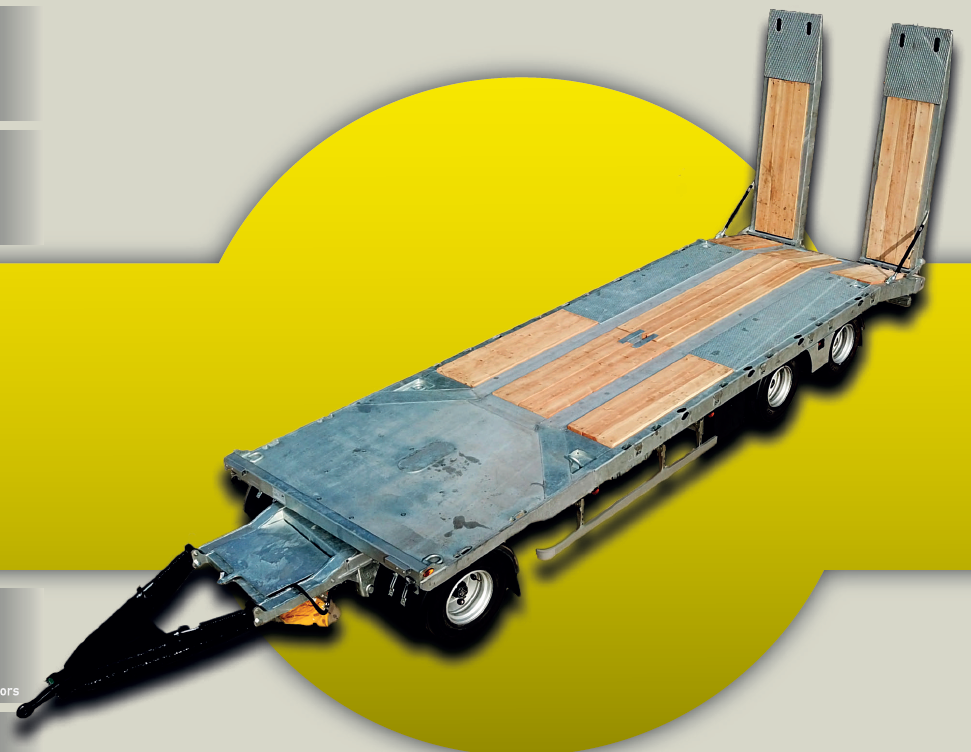

| Ramps | 3000 mm long, 750 mm wide, 8 mm thick, laterally movable steel ramps; Cross struts 450 mm apart; Hydraulic or mechanical activated ramps
|
| Lighting System | 24 Volt lighting system according to EC 76/756; LED lighting set, 1 rotating beacon plug-in with holder; LED side, front, and back marker lamps with reflectors; Reflective band on sides and rear; Bulkhead division with 2x7 pol DIN ISO 1185 and DIN ISO 3731 or 1x15 pol DIN ISO 12098
|
| Tyres and Rims | 12 pieces Steel Rims with 135 offset; 12 pieces of tyres 245/70 R 17.5 conformant to 458/2011 EU; Rims painted in silver RAL 9006
|
| Included Accessories of Chassis | Side protection barriers made from anodised extruded aluminium profiles conformant to ECE R73; Rear bumper made of steel, conformant to ECE R58; 4 anti-spray mudguards conformant to EC 109/2011 EU; 2 yellow wheel chocks with holder; 1 fire extinguisher holder (suitable for extinguishers between 6-9 kg); 12 Ro-Ro rings; Vehicle satisfies EC type-test with Certificate of Conformity (CoC); Two reflector plates vertically placed on rear wall (565x200 mm ECE-R70); ECE 104 reflector tapes red on back, yellow on sides |
